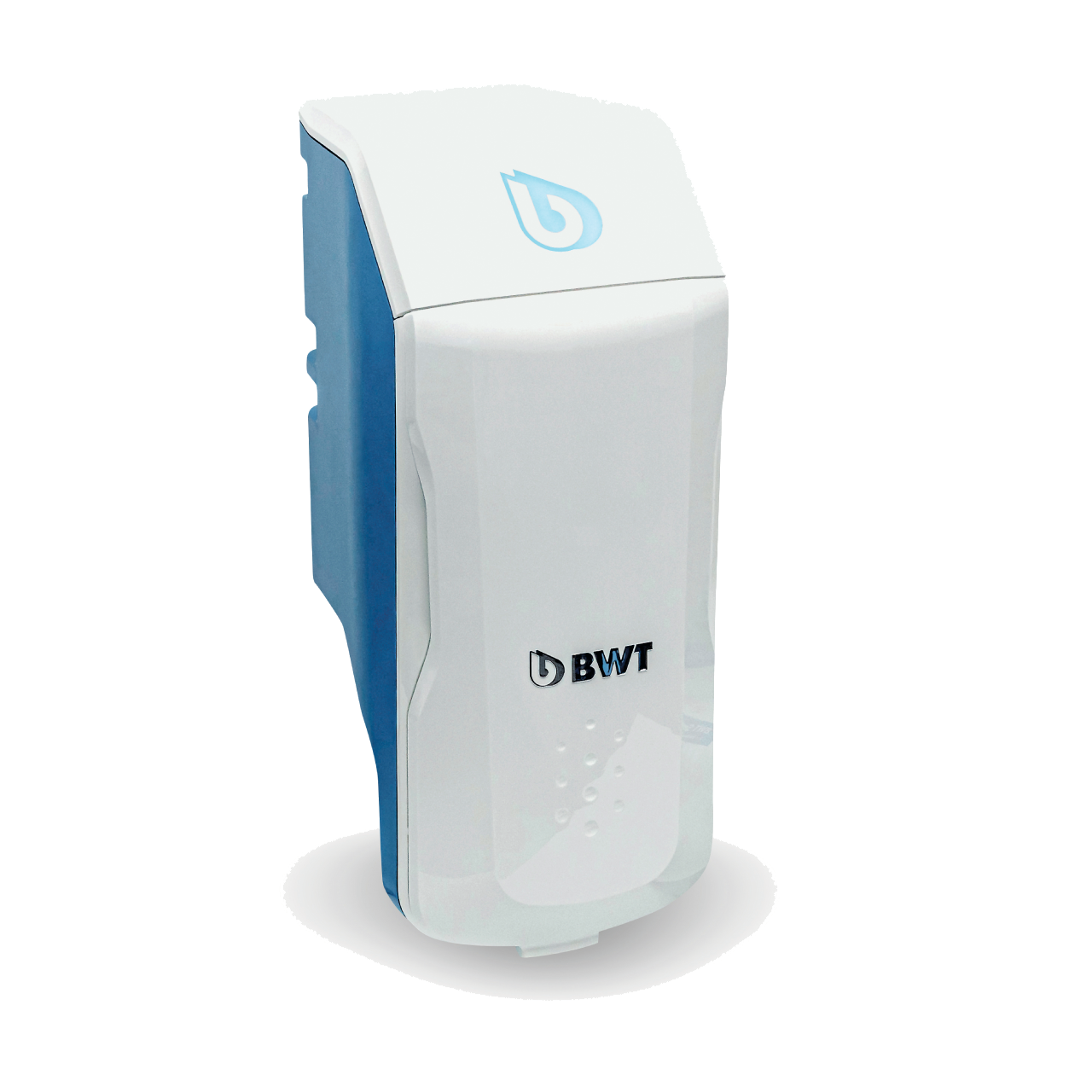

BWT Smart Dos DT
Compact solution to protect your water pipes with optimally calculated mineral quantities
Product number: 125564213
- Individual setting option for the dosing rates
- Digital monitoring of the mineral and practical networking with the BWT Best Water Home App
- Electronically controlled active ingredient delivery
- Scope of delivery: incl. pipe/wall bracket, turbine with sensor, connection screw fitting, dosing valve
Description
Drinking water installation systems must be protected from limescale and corrosion; if this is not done, it can have far-reaching consequences. An unfavourable water composition can trigger corrosion just as much as a pH value that is too low or neutral salts. The use of unsuitable materials, unfavourable operating conditions or even a faulty installation can also accelerate corrosion and, in the worst case, cause pipe bursts. As a rule, the damage occurs as soon as several factors come together.
The BWT Smart Dos dosing system provides water pipes with lasting protection against limescale deposits and corrosion through optimally calculated mineral quantities.
Download
Technical details
| Abmessungen Dosierer (H x B x T): | 430 x 180 x 227 mm |
|---|---|
| Ambient temperature min./max.: | 5-25/40 °C |
| Anschlussnennweite: | DN 25 |
| Arbeitsbereich min./max.: | 0,03 - 5,8 m³/h |
| Dosage: | 25 - 50 ml/m³ |
| Druckverlust bei max. Arbeitsbereich: | 0,3 bar |
| Installation length in mm: | 175 mm |
| Nenndruck (PN): | 10 bar |
| Pouch size: | 1,5 l |
| Wassermenge je Pouch Mineralstoff: | ca. 30 - 60 m³ |
| Water temperature min./max.: | 5-25 °C |
