Flexible Filtration Solutions

Wide Range of Applications

BWT offers access to one of the most comprehensive ranges of water filters in Europe

Water Filters

Suits the needs

A physical barrier designed to remove undesirable elements from water

Filtration is one of the most widely used methods of water treatment, it is the process of removing turbidity from the water. Water filters provide a physical barrier to remove undesirable elements from your water supply such as particulates, bad taste, odours and even specific trace elements. While a single filter will work in some situations, it is often necessary to use a combination of single, multiple and specialist filters to satisfy the needs of individual projects. The modular nature of BWT filtration products means that they can be tailored to provide an effective solution for both simple and more complex filtration issues.

The sizing of a water filter will depend on a number of factors and include, but are not limited to:

Volumes of water to be treated
Turbidity
Suspended Solids
Flow Rates Required
Temperature

Typical Applications

Drinking water supplies
Borehole and spring water supplies
Rain water reclamation
Pre-treatment & protection of plant
Food processing plants
Beverage processing

Markets

Offices
Hotels and restaurants
Horticultural and agricultural
Sports and leisure facilities
Manufacturing
Food processing
Healthcare
Education
Laboratories

Technology driven filtration

Mixture of traditional & modern materials

BWT’s comprehensive range of water filtration products use a mixture of traditional and modern materials, state of the art technology and many years of experience to provide filtration solutions suitable for a wide range of applications, including the protection of plant and equipment, process water and the overall improvement of drinking water quality.

Correctly specified by our technical sales team, BWT filtration solutions can also be used to protect and increase the effectiveness and efficiency of other water treatment products, including water softeners, reverse osmosis and ultra-violet systems.

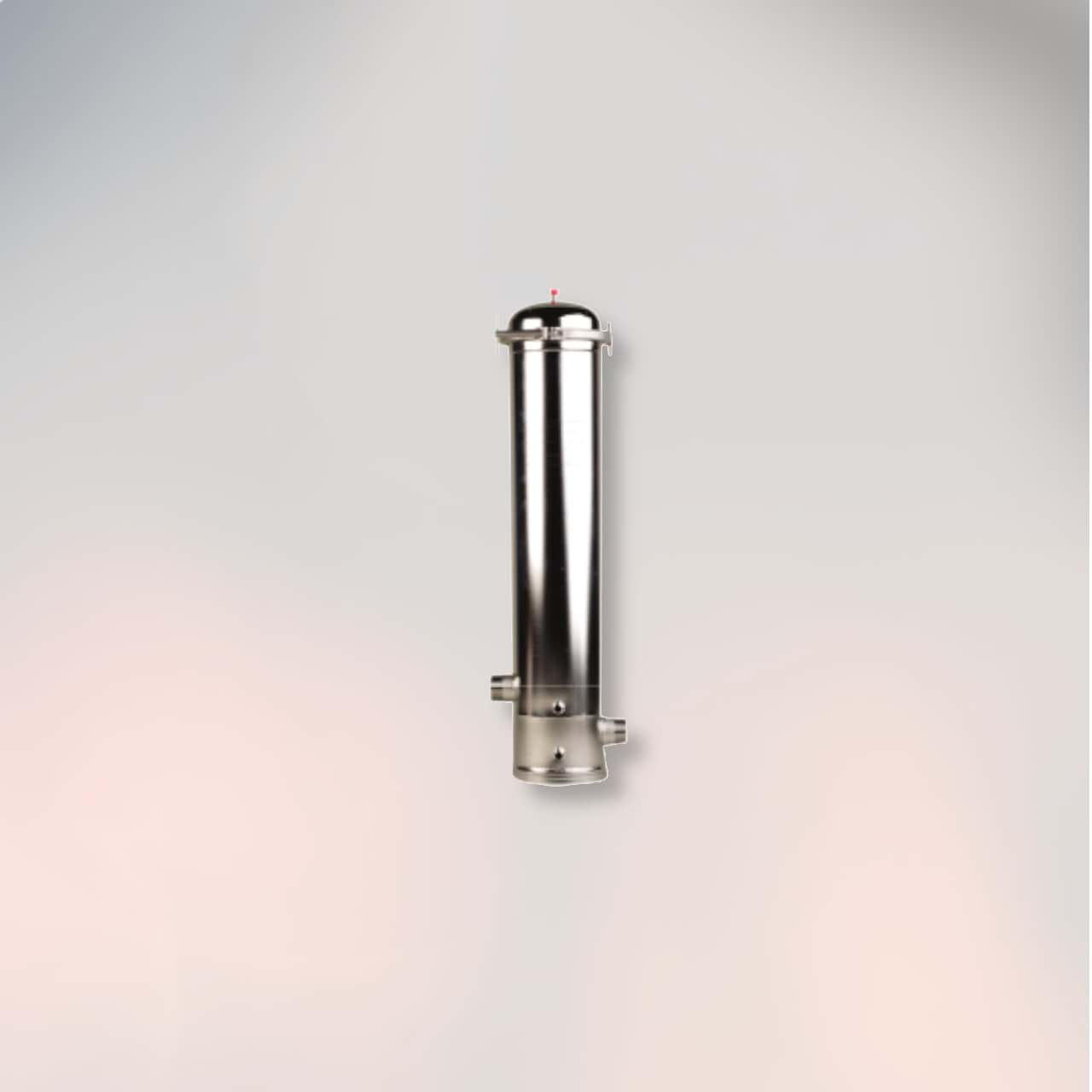

Stainless Steel Filter Housings

Designed to work with a range of replacement filters at water temperatures up to 121°C, and are suitable for a wide range of commercial applications including primary and secondary filtration. Manufactured from austenitic 316 stainless steel these filters are extremely duarable. Capable of handling flow rates of up to 90 m3/h they are ideally suited to heavy commercial and industrial applications. With clean and dirty water drain points they are also easier and quick to maintain.

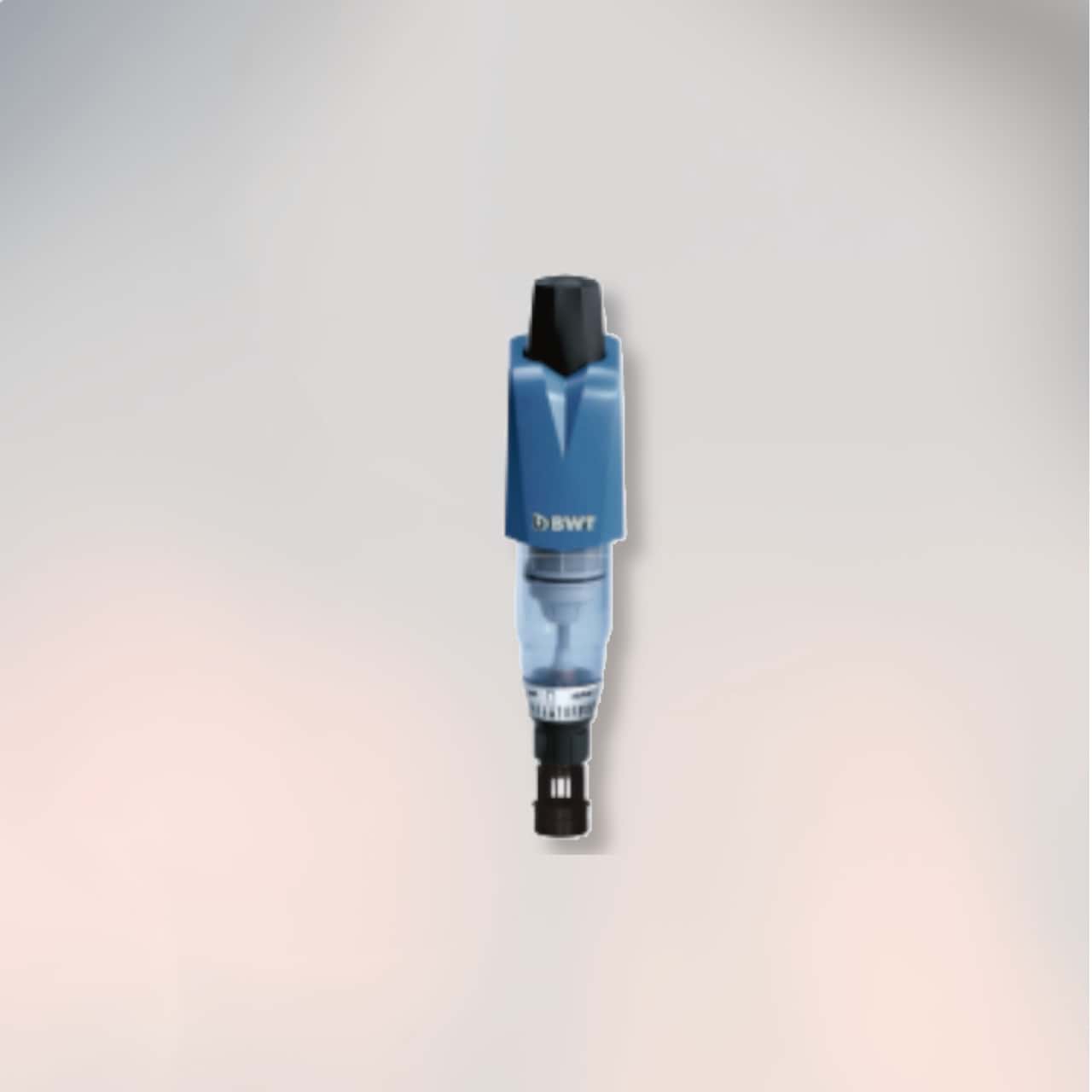

BWT Infinity RF 3/4“ – 2

Manually operated backwash filter for use with cold water supplies. Suitable for flow rates up to 11.0m3/h with a filter effectiveness of up to 90 μm. Manufactured with a brass head and durable transparent bowl this filter is ideal for commercial installations and features a waste water connection in accordance with DIN 1998 and backwash reminder.

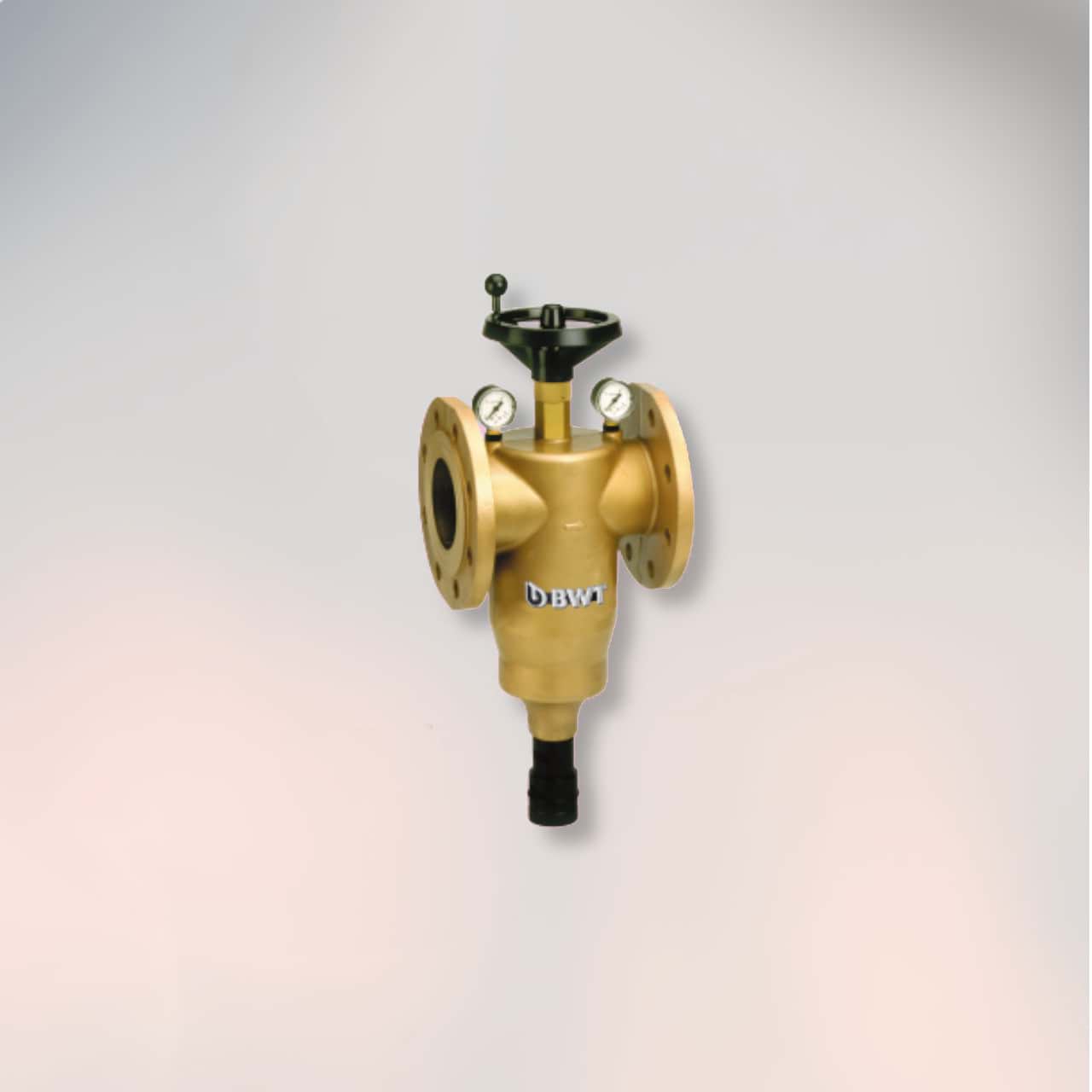

BWT Infinity RF DN 65 – DN125

Heavy duty industrial style manually operated backwash filter for use with cold water with waste water connection in accordance with DIN 1998. Suitable for flow rates of up to 100m3/h and offers the choice of filtration effectiveness of 100 or 200 μm. This filter is suitable for horizontal installation only.

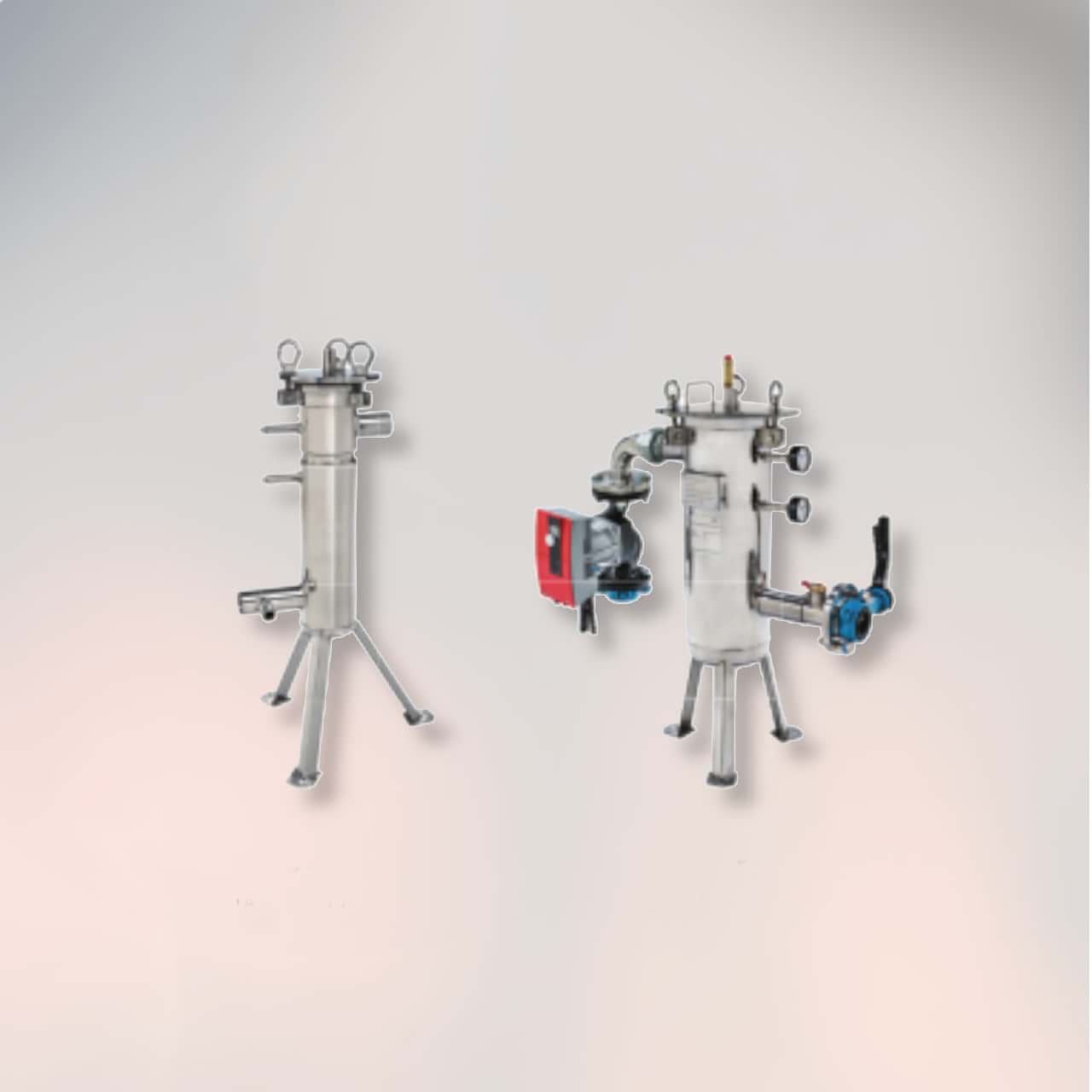

SoluTECH Clarifer Filters HVAC Service Filtering

SoluTECH Clarifer Filters are designed to continuously eliminate the following: oxides and magnetisable particles using a powerful magnetic bar; solid impurities, sludge and suspended matter using a felt filtering bag that traps particles bigger than 20 μm. Manufactured from stainless steel these filters are extremely duarable. Capable of handling high flow rates of dirty water they are ideally suited to heavy commercial and industrial.

Filter Housings

Durable polypropylene cold water filter housings for standard and high flow applications, suitable for use with a wide range of replaceable filter cartridges. Models available for the filtration of drinking and service water with flow rates of up to 2.4m³/h

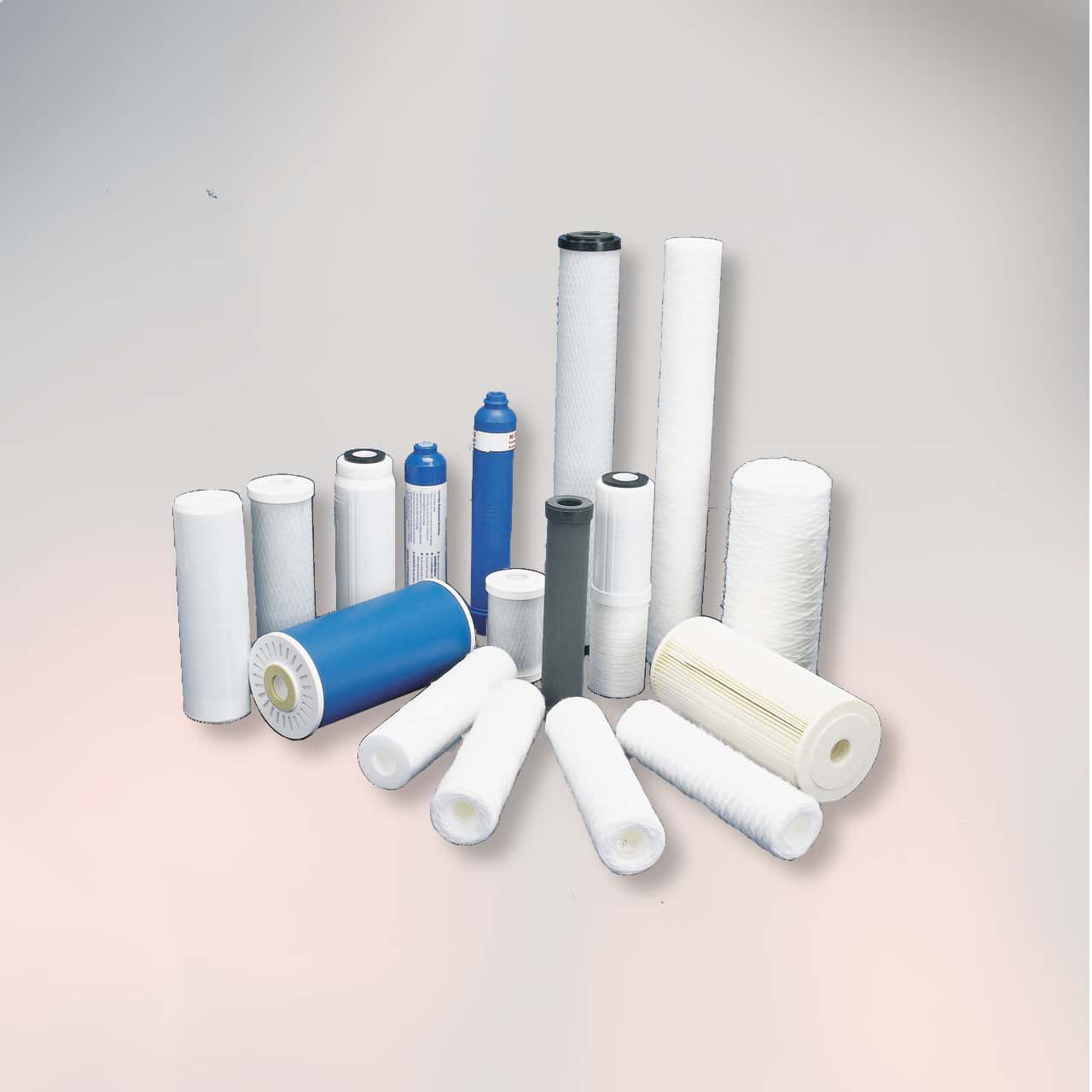

Filter Cartridges

Filter cartridges are available in a range of sizes and materials, each filter cartridge should be selected to suit the specific application and the appropriate filter housing. A combination of filter types and other water treatment equipment may be necessary to achieve any given specific water quality required. Filter cartridges can be used to remove unwanted substances including, but not limited to: sediment, pesticides, taste and odours as well as organic chemicals.
