BWT AQA therm MOVE

Name: BWT AQA therm MOVE
Brand: BWT
SKU: 12843
Price: 0,00 GBP

Protection for heating systems

Find a stockist

Item number:12843

Ideal economical and environmentally friendly solution for generating perfect heating water
Functions without electricity
Easy handling
High capacity (80 m³ at 20°dH – guaranteed)

Heat you can rely on

Installation in domestic water systems

BWT AQA therm products are installed in heating circuits, separately from the pipes that deliver water to your kitchen and bathrooms. The right heating water will protect your entire heating system

Protection against deposits, corrosion and air

Heating system not heating up properly? Fed up with high heating costs? The right water can prevent limescale, corrosion and deposits in your heating system, thus avoiding malfunctions or breakdowns

The best heating water without additives

AQA therm products Ideally coordinated in accordance with BWT's "ReinHEIZgebot" pure heating water concept let you perfectly condition your heating system's water – using no chemical additives

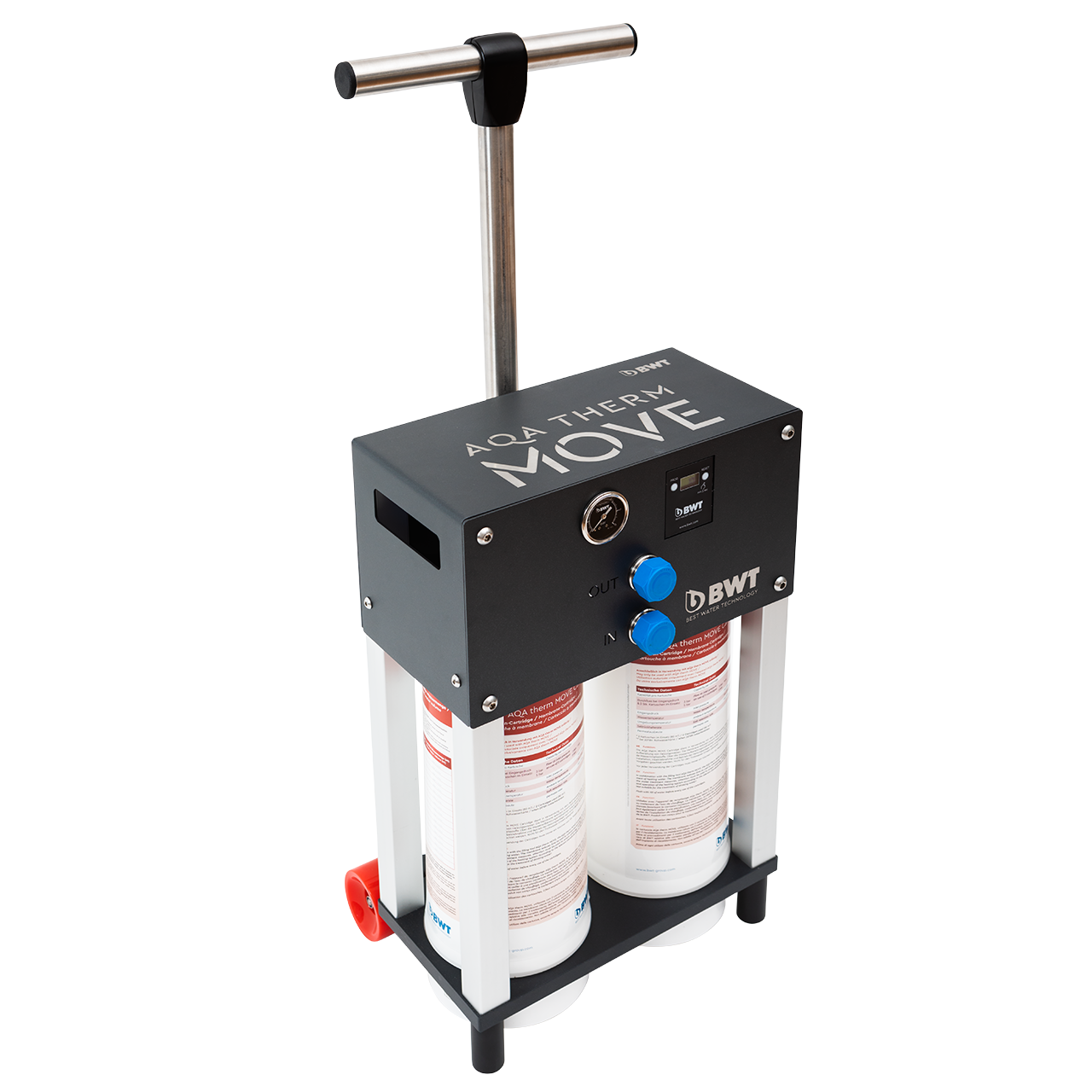

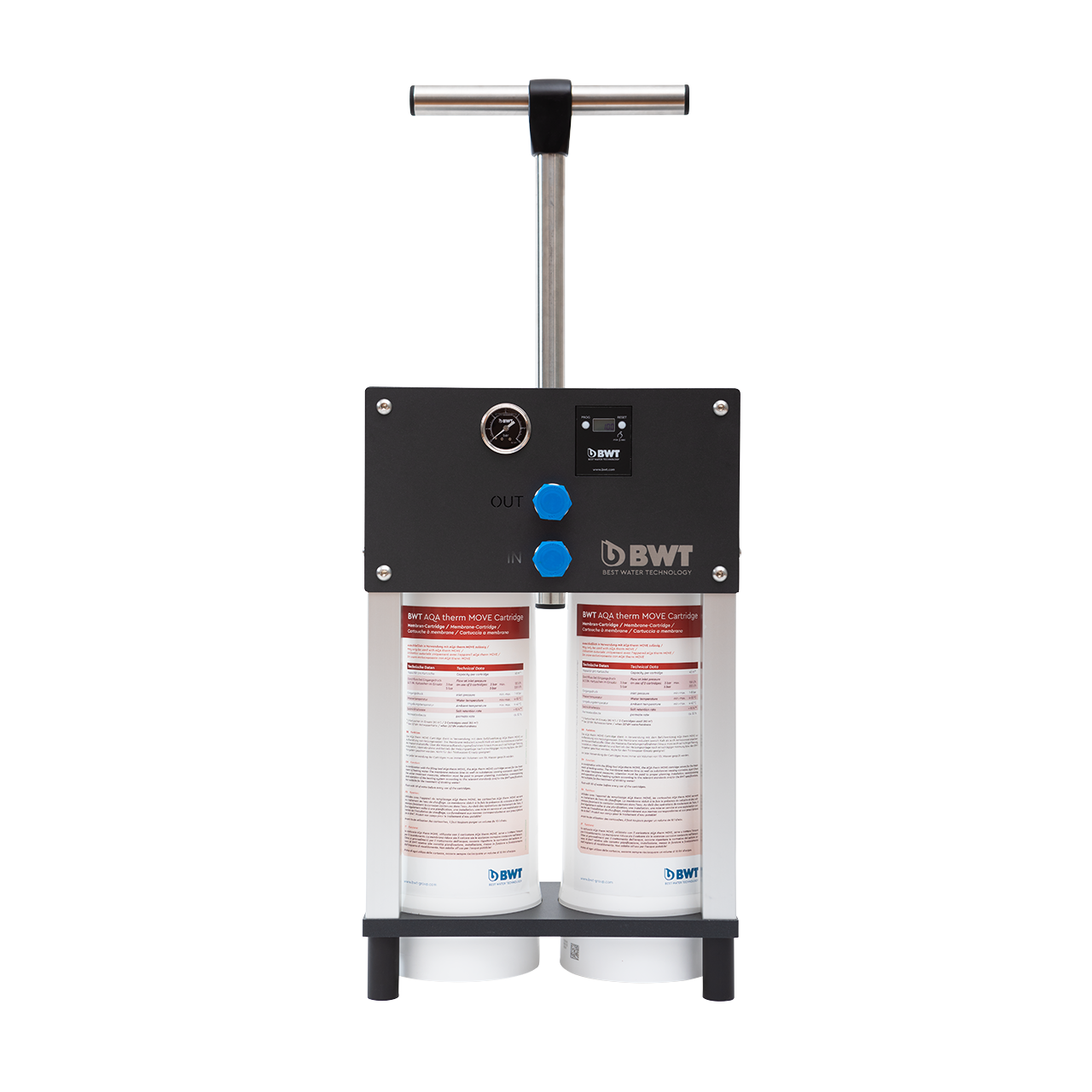

AQA therm MOVE – a dynamic addition to the market for heating system filling solutions

The new AQA therm MOVE supplies heating systems with perfect heating water without additives. The economical and environmentally friendly filling system provides efficient protection for heating systems and ensures sustainability thanks to the low-sodium water in accordance with VDI 2035.

Save up to 1,000 litres of mixed bed resin for generating 80 m³ of filling water at 20°dH
Reduce the workload by 40-60x for replacing the resin
Protect the environment and the heating system thanks to perfect, natural heating water without additives
Make the job of filling heating systems truly mobile (no electricity required, easy membrane replacement, mobile complete unit)
(can be used for all certificates granted by the German Sustainable Building Council (DGNB))

Equipment and accessories at a glance:

Mobile unit with rollers
2x membranes
Water meter

Accessories:

Analysis case
Pressure-dependent shut-off (filling fitting)
Fine filter
AQA therm HES filling adapter

Technical details

Product features

Item number 12843

Ambient temperature °C	5 - 40
Concentrate connection mm	8 (hose connection)
Height / depth / width mm	537 / 225 / 337
Membran capacity (2 pcs.) at 20° dH	80.000 l
Minimum salt retention rate %	95
Permeate capacity at 15°C l/h	130 (3bar) - 220 (5bar) max. 30° dH/1000 μS/cm
Permeate connection DN	20 (¾'' AG)
Raw water connection DN	20 (¾'' AG)
Raw-water pressure bar	2,0 - 6,0
Max water Temperature °C	5-25
Yield %	45 - 50
