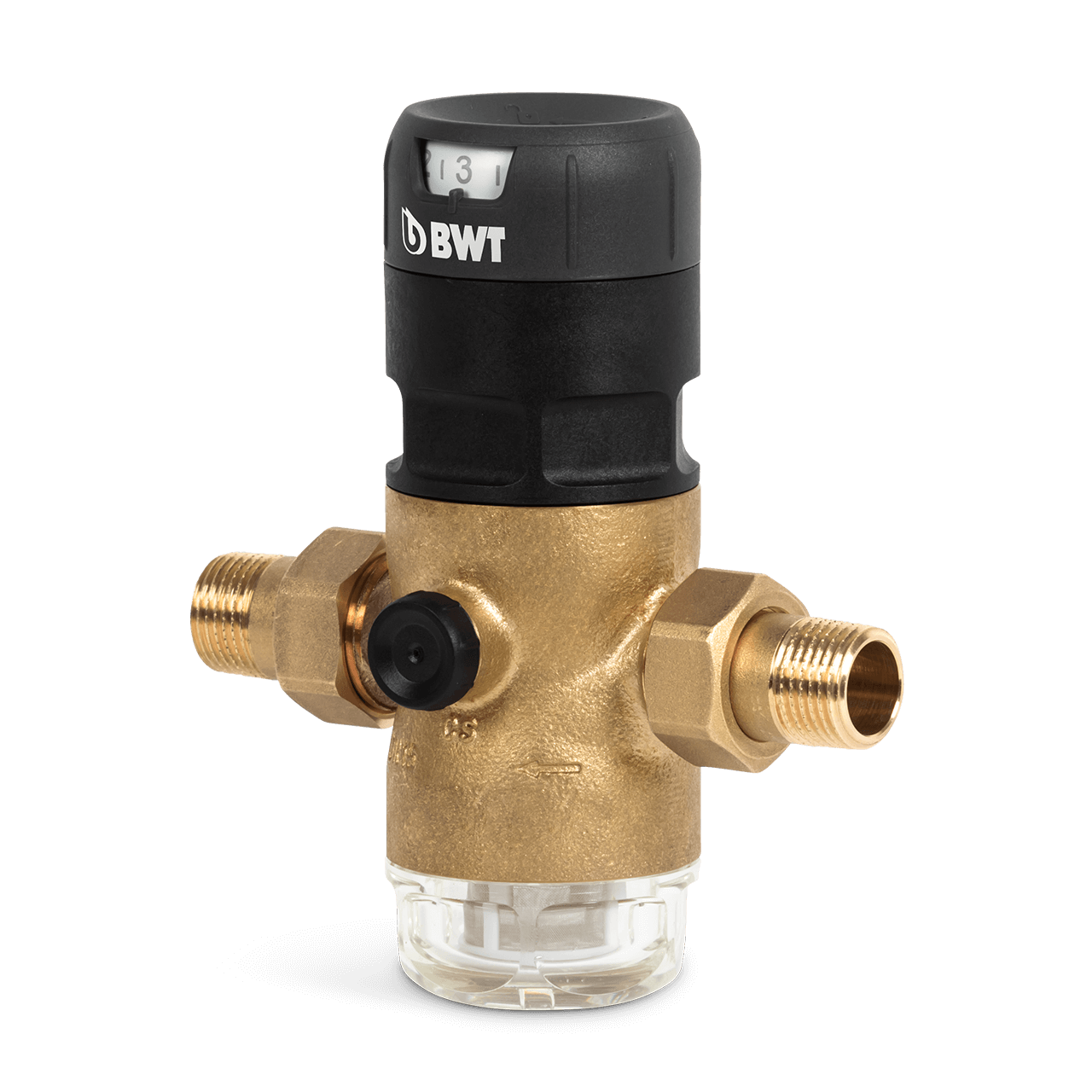

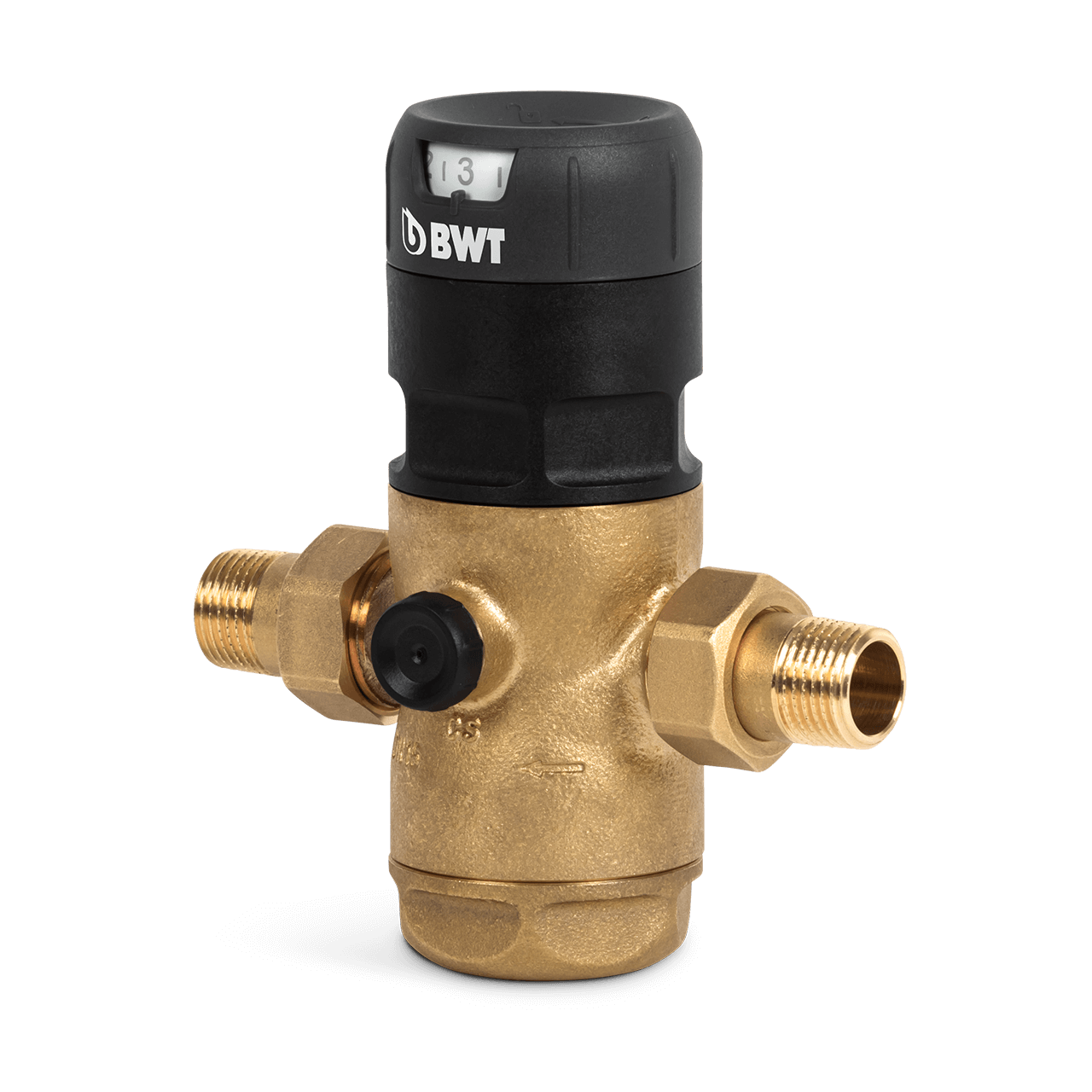

D1 Eco
D1 Eco

BWT D1 Eco 3/4" 85.25


Request a quote
Item number: 125300275
  • Professional quality pressure reducer for protecting plumbing installations and appliances against excess pressure, for saving water and reducing vibration and noise
  • For use in private, industrial and commercial environments.
  • sizes 1/2 "to 1", are the same length for easy replacement
  • Patented Venturi effect ensures highest flow rate and perfect pressure control
  • High quality brass UBA
  • High quality plastics derived from medical technology
  • Easy to exchange stainless steel filter sieve 160 μm
  • Pressure Scale visible from all sides for pressure adjustment without pressure gauge
  • D1 Eco 40.16 for water temperatures up to 40 ° C and inlet pressure up to 16 bar D1 Eco 85.25 for water temperatures up to 85 ° C and inlet pressure up to 25 bar
Jump to
Product Details
Technical Details
FAQ
Product Details

The BWT D1 pressure reducer protects the water supply system ans appliances in single and multi-family houses, commercial and industrial buildings from the potentially damaging effects of excessive mains water supply pressure in accordance with ÖNORM EN 806–2 in conjunction with DIN 1988–200. I t helps to avoid pressure damage, reduce water consumption and ensure sound insulation through reduced vibration and 'knocking'. The D1 is used to reduce the pressure and regulate the desired downstream pressure and keep it constant, even if the upstream pressure fluctuates significantly. A constant and not too high pressure protects fittings and devices in the entire water supply system.

Technical details

Product features

Item number 125300275
Temperature range Warm water up to 85° C
Dimensions, execution DN 15 - DN 25 / valve insert, spring bonnet, sieve and filter cup in the same size 1
Pre/post pressure adjustable 25 bar / 1,5 - 7 bar
Filter bowl material Metal
Housing material Brass according to the UBA positive list

What is a pressure reducer needed for?

The BWT D1 pressure reducer protects water supply systems in single and multi-family houses, commercial and industrial buildings from excessive supply pressure in accordance with ÖNORM EN 806-2 in conjunction with DIN 1988-200. It thus helps to avoid pressure damage, reduce water consumption and ensure sound insulation. The D1 is used to reduce the pressure and regulate the desired downstream pressure and keep this constant, even if the upstream pressure fluctuates significantly. A constant and not too high pressure protects fittings and devices in the entire water supply system.

What problems can arise from pressure fluctuations or without a pressure reducer in water pipes?

  • Water leaks from poor joints and damaged pipes
  • In extreme cases even burst water pipes
  • Noise nuisance due to pressure peaks that can cause vibration and 'knocking'
  • Increased water consumption and costs

Does a pressure reducer have to be serviced?

ÖNORM EN 806-5 recommends that a pressure reducer be inspected or serviced annually.
Weitere laden
Product Details
Product Details

The BWT D1 pressure reducer protects the water supply system ans appliances in single and multi-family houses, commercial and industrial buildings from the potentially damaging effects of excessive mains water supply pressure in accordance with ÖNORM EN 806–2 in conjunction with DIN 1988–200. I t helps to avoid pressure damage, reduce water consumption and ensure sound insulation through reduced vibration and 'knocking'. The D1 is used to reduce the pressure and regulate the desired downstream pressure and keep it constant, even if the upstream pressure fluctuates significantly. A constant and not too high pressure protects fittings and devices in the entire water supply system.

Technical Details

Technical details

Product features

Item number 125300275
Temperature range Warm water up to 85° C
Dimensions, execution DN 15 - DN 25 / valve insert, spring bonnet, sieve and filter cup in the same size 1
Pre/post pressure adjustable 25 bar / 1,5 - 7 bar
Filter bowl material Metal
Housing material Brass according to the UBA positive list
FAQ

What is a pressure reducer needed for?

The BWT D1 pressure reducer protects water supply systems in single and multi-family houses, commercial and industrial buildings from excessive supply pressure in accordance with ÖNORM EN 806-2 in conjunction with DIN 1988-200. It thus helps to avoid pressure damage, reduce water consumption and ensure sound insulation. The D1 is used to reduce the pressure and regulate the desired downstream pressure and keep this constant, even if the upstream pressure fluctuates significantly. A constant and not too high pressure protects fittings and devices in the entire water supply system.

What problems can arise from pressure fluctuations or without a pressure reducer in water pipes?

  • Water leaks from poor joints and damaged pipes
  • In extreme cases even burst water pipes
  • Noise nuisance due to pressure peaks that can cause vibration and 'knocking'
  • Increased water consumption and costs

Does a pressure reducer have to be serviced?

ÖNORM EN 806-5 recommends that a pressure reducer be inspected or serviced annually.
Weitere laden

Product comparison

D1 Eco

BWT D1 Eco 3/4" 85.25



selected

D1 Eco

BWT D1 Eco 1/2" 40.16

more
D1 Eco

BWT D1 Eco 1/2" 85.25

more
D1 Eco

BWT D1 Eco 3/4" 40.16

more
D1 Eco

BWT D1 Eco 1" 40.16

more
D1 Eco

BWT D1 Eco 1" 85.25

more
Temperature range Warm water up to 85° C Cold water up to 40 ° C Warm water up to 85° C Cold water up to 40 ° C Cold water up to 40 ° C Warm water up to 85° C
Dimensions, execution DN 15 - DN 25 / valve insert, spring bonnet, sieve and filter cup in the same size 1 DN 15 - DN 25 / valve insert, spring bonnet, sieve and filter cup in the same size 1 DN 15 - DN 25 / valve insert, spring bonnet, sieve and filter cup in the same size 1 DN 15 - DN 25 / valve insert, spring bonnet, sieve and filter cup in the same size 1 DN 15 - DN 25 / valve insert, spring bonnet, sieve and filter cup in the same size 1 DN 15 - DN 25 / valve insert, spring bonnet, sieve and filter cup in the same size 1
Pre/post pressure adjustable 25 bar / 1,5 - 7 bar 16 bar / 1.5 - 7 bar 25 bar / 1,5 - 7 bar 16 bar / 1.5 - 7 bar 16 bar / 1.5 - 7 bar 25 bar / 1,5 - 7 bar
Filter bowl material Metal plastic Metal plastic plastic Metal
Housing material Brass according to the UBA positive list Brass according to the UBA positive list Brass according to the UBA positive list Brass according to the UBA positive list Brass according to the UBA positive list Brass according to the UBA positive list

Masterpiece

D1 - The new BWT pressure reducer impresses with its construction, the choice of materials, and its very easy operation and last but not least, the optimization of pressure and flow behavior: expressed in a number - Kvs value* 9.3m³/h (DN 25).

  • Patented Venturi effect delivers the highest flow rate with perfect pressure control
  • Up to 50% heavier than comparable products (e.g. weight D1 Red 1 “: 1.7 kg vs. competitor 1.14–1.4 kg)
  • Up to 16 or 25 bar inlet pressure

*The Kvs value expresses the flow rate in a pressure regulating valve when the valve is fully open and a pressure differential of 1 bar.

BWT D1 Auszeichnung

The Full range

Offers a wide range of high quality pressure reducing valves suitable domestic and commercial applications. Supplemented with a full range of consumables and replacement parts.

  • Models available in three materials: brass UBA - gunmetal - stainless steel
  • High grade plastics derived from medical technology
  • Cold and hot water models available - operating range 40 °C cold or up to 85 °C hot
  • Eco sizes available ½ "to 1" (other models ½ "to 2" please call for details)
  • Common lengths for easy exchange
  • Fully serviceable 75 spare parts and consumables available
BWT Druckminderer D1

Simple Maintenance

Stay on top of routine maintenance with APP reminder

  • The app reliably reminds you of the annual inspection of the filter screen
  • The large-area stainless steel sieve (160 μm) can be checked easily through the transparent bowl
  • A dirty sieve can be cleaned or replaced in a few simple steps - by a trained operator without dismantling the spring hood
D1 Hygiene-Set

Water saving calculator in the Best Water Home App

Wherever water flows freely, for example in to a washbasin, a shower tray, the sink in the kitchen or even when watering the garden. water and money is wasted. It is well known that a pressure reducer helps eliminates this waste. Now it even easier to maximise those saving with the BWT D1 pressure reducer, with the support of an adjustment aid in the app, maximum savings can be achieved quickly and easily.
BWT D1 App

10 year D1 guarantee

On the function and operation of the D1 pressure regulator. Subject to:
  • Being installed and commissioning in line with the manufacturers instructions
  • It is used only as Intended by the manufacturer
  • It is properly used and maintained by the system user, with particular reference to the annual inspection in accordance with EN 806–5
  • Product is registered in the Best Water Home app
D1 App + Garantie
